- Universal power switch (these do not come with a harness)
- For load under 3 Amp, you do not need a relay with this switch. For load above 3 Amps, we advise you to use of relay
-
LED on all the time or only when switch is on (depending how you wire it)
-

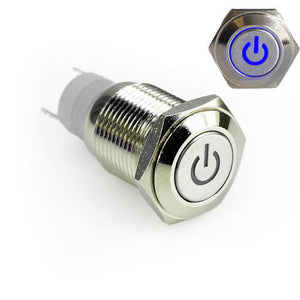

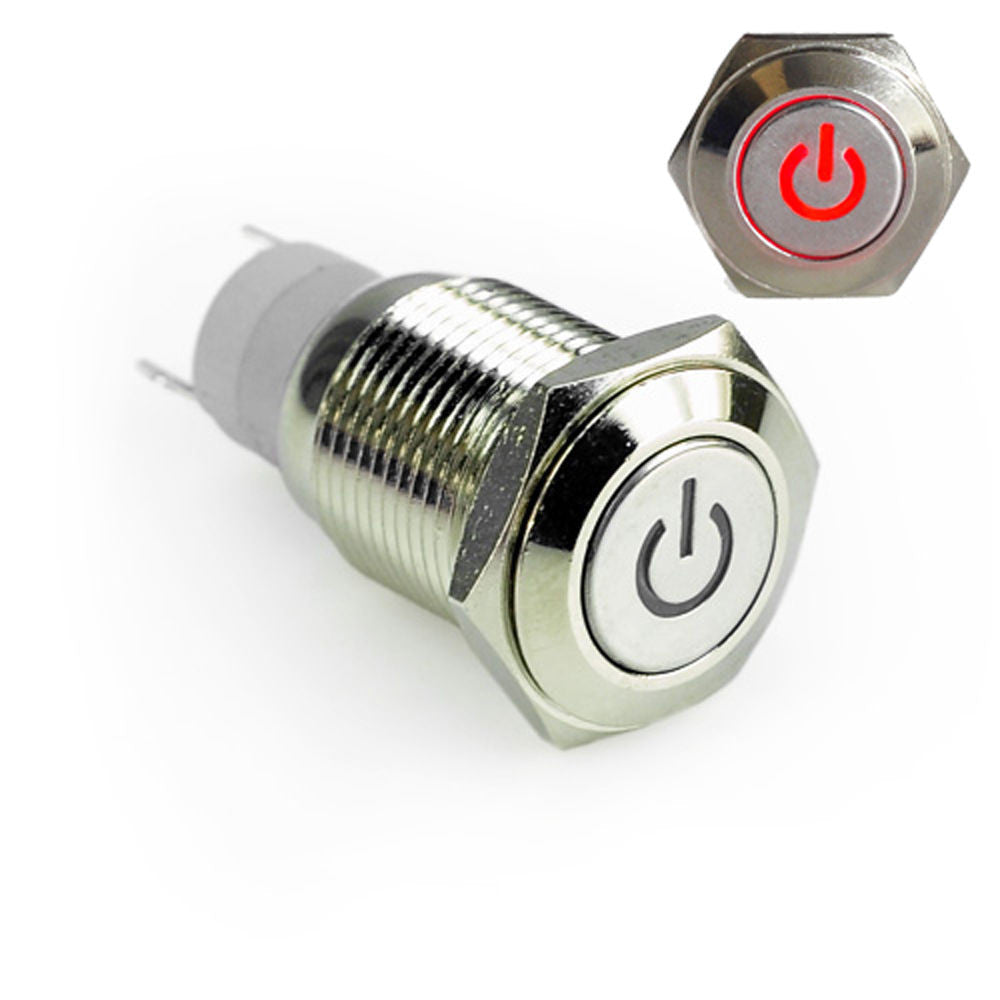

Led Power Switch latching type, push it-- on, push it again -- off
- Head diameter 18mm
- Button diameter 10mm
- Hole size required 16mm
- Depth inc contacts 35mm
- Latching type, push it-- on, push it again -- off
- Switch rating: 5a/250vac
- Led voltage: 12v only

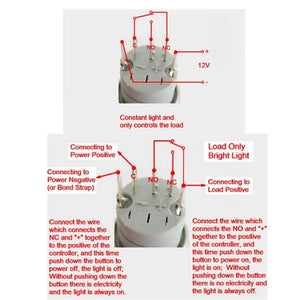

Wiring:
Power circuit(to power both switch circuits and the switch lamp)
+ is for Positive
- is negative
Switch circuit
C is Common
NC is Normally Closed(pos)
NO is Normally Open (pos)
Get a relay HERE
Usually ships in 1-3 Business Days
